Micro Laser Marker

The most remarkable thing about the miniature laser markers in the electronics industry is that they are very short and compact, and they are designed for manufacturers of electronic components where space or space is limited.

The micro laser marker prints tiny and detailed laser icons on tiny parts: instantaneous, high-quality, traceable at all times, and meets the multiple requirements of the electronics industry.

Micro laser markers can apply complex and variable data to mobile and static products, so they are the first choice for long-term marking of electronic devices and circuit boards.

→ The structure is short and compact;

→ Single-cassette design, currently the smallest unit on the market;

→ Ease of synthesis: Compact design, flexible software/interface;

→ The user interface is available in multiple languages, with a dual-beam output version;

→ Main areas of application: Electronics industry (laser marking of circuit boards and electronic devices: transistors, diodes, small integrated circuits).

Micro laser integration concept

The small size of the micro laser marker not only allows the interface to be easily operated with one hand, but also allows for quick integration into production lines as well as electronic test and processing equipment. Screws are installed around the laser marker for barrier-free horizontal or vertical assembly. The beam can be emitted in a 0° or 90° direction, thus guaranteeing integration anytime, anywhere.

As for the software, the lasers have a communication interface with an Internet and RS-232 interface, which ensures a seamless connection with complex production lines.

→ The shortest and most compact device on the market;

→ Single-box design: quick and easy to install;

→ Optimized structure for integration into test and processing systems;

→ Intelligent system components: product detector, autofocuser, one-time adjustment of working distance;

→ The working distance is 30% longer than conventional systems.

Software concept for miniature lasers

Versatile, powerful, and reliable.

The graphical user interface of the micro laser marker is more intuitive, ensuring maximum user flexibility.

With a variety of optional marking formats, the Micro Laser Marker can be used to create and edit a variety of laser marking jobs.

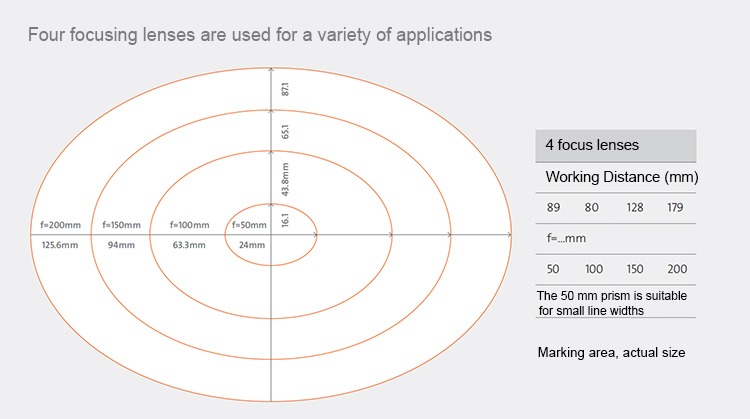

Micro laser marking area

Micro laser marking format

→ Standard fonts;

→ Personal fonts such as High Speed or OCR (Convert PDF documents to MS Word files);

→ Machine-readable codes (2D and barcodes);

→ Graphics/image components, logos, symbols, etc. (common formats can be imported: DXF, JPG, AI, etc.);

→ Straight, circular, angular text marking; Rotating, reflecting, expanding, compressing the marking content;

→ Sequence and serial number; Automatic generation of dates, hierarchies, time codes, real-time clocks; Online coding of personal data (weight, content, etc.).
