Ink inkjet printers
Continuous inkjet printers

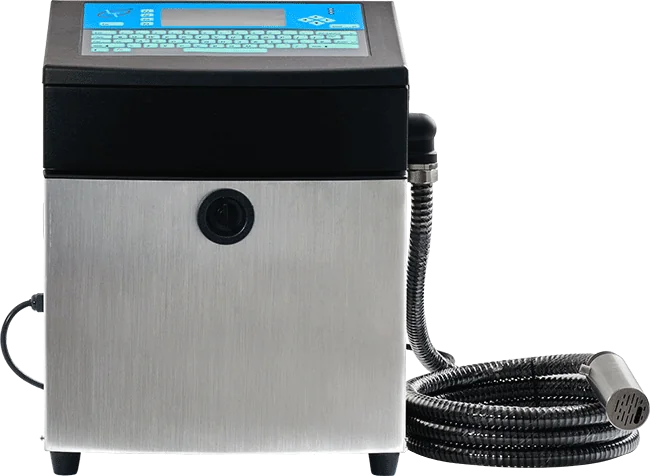

KM710
Product Overview
The KM710 continuous inkjet printer uses continuous coding technology to print up to 5 lines of code on a variety of materials, with consistent performance, stability and reliability, simple maintenance and low cost.

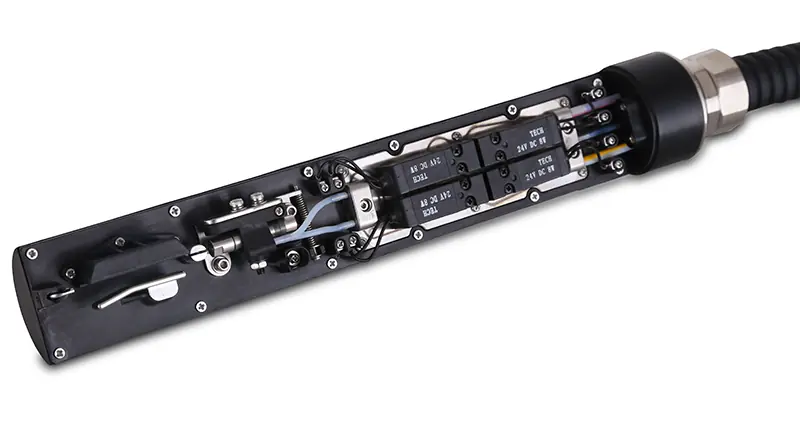

The KM710 printer is designed to reduce production costs and increase production line output, resulting in consistent, error-free printing. The hermetically sealed printhead and rugged stainless steel construction provide reliable operation in harsh production environments and optimize line productivity.
Designed to be simple and easy to set up, this continuous inkjet printer lets you use fast-drying inks to print clear, accurately on your products for long-lasting lots, dates and other product information.
Benefits

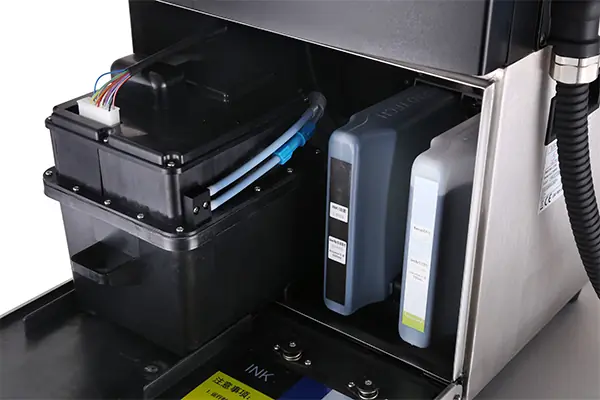

Ink monitoring technology
Kecmark continuous inkjet printers use the latest ink line system to reduce additive consumption by up to 50%.
Kecmark printers are equipped with a trough and viscosity sensor for recovering the refill fluid after cleaning, preventing ink dilution and maintaining consistent print quality at all times.
The surrounding environment, temperature, ink viscosity, etc., will affect the change of the state of the ink particles used in printing. The Kecmark Series printers monitor the condition of ink particles in real time, which can be adjusted to a steady state by the user. The inkjet code is not affected by the environment, and the printing is always clear.
Easy to use
- The durable, all-stainless steel design and IP65 protection allow you to install or relocate wherever you need it. At the same time, the ink circuit system and the electronic control system are completely separated to avoid ink leakage and damage to the circuit.
- The system can be set to store 68 command lines, and can be quickly edited when changing batches or products, without the need to re-type data or navigate between multiple screens.
- The automatic cleaning system improves uptime, and the self-cleaning and synchronous self-test of the nozzle make start-up quick and easy!
- Convenient liquid priming, using isolated sealed cartridges, can achieve completely contamination-free, error-free liquid filling during the coding process.
Light-colored object surface identification code
List of items
Each inkjet printer comes standard with the core and accessories including the following:
Inkjet printers, brackets, photoelectric sensors, inks, cleaning agents, thinners, cleaning kits, manuals, etc. In addition, customized accessories can also be equipped according to customer needs
Technical Specifications
| Coding characteristics | |||
| Printing direction | 360° All-round | ||
| Number of print lines | 1-3 rows~(7*5 dots) 1-4 rows~(5*5 dots) | ||
| Array configuration | 5* 5 、 9*7、16*11、16*16、 7*5 、12*9、19*14 、24*17、12*12 | ||
| Printing distance | 2~20mm (10mm optimum) | ||
| Character height | 1~12mm | ||
| Printing speed | Maximum speed: 7.5m/s (5*5 dots) | ||
| Throat length | Super soft, 3m length accurate | ||
| Preset encoding | Up to 68 stylistic messages + 50 pattern messages | ||
| UI | |||
| Characters can be sprayed | 1D and 2D barcodes, custom micro-labels, Chinese and English and numbers | ||
| Operator interface | Chinese/English | ||
| Interfaces/Printheads | |||
| Data interface | SD card | ||
| Nozzle | 60μm gem nozzle (thermostatic nozzle) | ||
| Operating environment | |||
| Rated voltage | 200 – 240V 50/60Hz | ||
| The power of the whole machine | 80W | ||
| Ingress protection | IP65 | ||
| Fuselage shell | Stainless steel + engineering plastics | ||
| Operating temperature | 0~45℃ | ||
| Humidity range | 80% max (relative humidity, non-condensing) | ||
| Product quality | 17Kg | ||
| Consumables | |||
| Printing ink | Solvent ink 500ml | ||
| Diluent | 750ml | ||
