Continuous inkjet printers are used for egg marking

• Plug-and-play connection
• Use the egg sorter's control system or the printer's manual solution to automate the creation and modification of print jobs;
• Accurately mark each egg;
• High-precision marking on eggs or egg cartons;
• Central print data management;
• Shelf life and other variable data are automatically updated;
• There is an option to label and code the package before or after packaging;
• If there are multiple customers, it is convenient to change the marking and coding imprint.

Continuous inkjet printers are more convenient

Challenge of topping eggs with labeling

• The elbow marking head is specially developed for egg sorters with limited space;
• Ability to integrate a continuous inkjet printer to emboss the top of the egg from above;
• Innovative space-saving design;
• Proven automated marking nozzle seals!

A system is used to mark the code

• Marking and coding on eggs and cartons using only a uniform system;
• Red, blue, and green inks are clearly discernible on white and brown shells;
• Flexible marking and coding positions on eggs (from all directions);
• Excellent readability on all packaging materials (cartons/paper, plastic, foam, shrink wrap);
• The marking and coding positions on the carton are flexible.

Reduce the cost of egg marking and coding

• 8 channels and 8 continuous inkjet printers can mark and encode up to 252,000 pieces/hour (= 30,000 pieces/hour for a single channel printer);
• Continuous printing technology is more cost-effective than labeling cartons;
• Lifetime free software upgrades;
• Save more energy costs;
• Due to the use of nozzle sealing technology, no solvent is consumed during production stops;
• Very low solvent consumption for marking;
• The service cycle is long, and the cost is completely transparent and open;
• Low maintenance costs, no need to replace expensive coding modules;
• There is no need for external compressed air, let alone an air filter.

It's as easy to operate as a computer

• 7-inch touch color display;
• A more intuitive and clear menu bar;
• Interface with basic Windows features, such as: zoom;
• Users can directly access the interface with customizable buttons;
• It can be controlled remotely via a tablet or personal laptop.

The inkjet printer uses nozzle sealing technology

• The inkjet will not dry out during the coding process;
• Even if the work is stopped for a long time and then started again, printing can start within 1 minute;
• It is always kept clean during the start-up process and the operability after start-up is the maximum;
• No routine maintenance is required;
• Regular rinsing is not required.

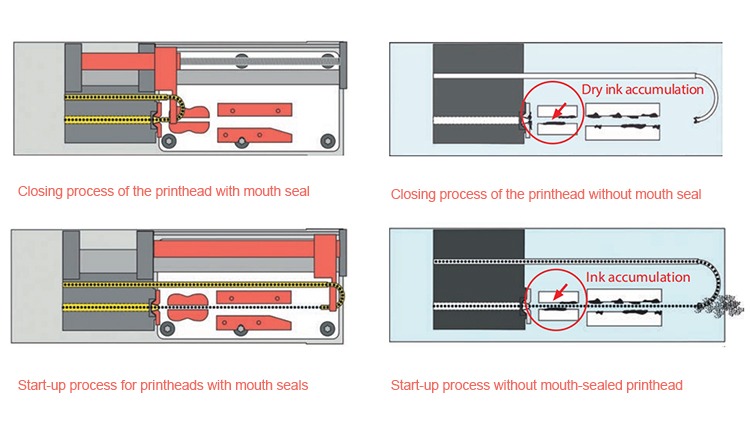

Closing process of the printhead with mouth seal

When the printer is turned off, the sink automatically moves to the nozzle, creating a sealed, airtight circuit. Close the print this way: 100% safe and prevent the ink from drying out!

Closing process of the printhead without mouth seal

Ink residue from the nozzle of a non-spout inkjet printer is exposed to air without protection and gradually dries. The result is a variety of problems the next time you start the printer.

Start-up process for printheads with mouth seals

In the beginning, the ink in the inkjet printer will flow regularly in the sealed circuit, forming a stable ink flow. Then, the sink will automatically turn on. Of course, this is a quick and error-free start-up in a matter of seconds, and the printhead of the mouth-sealed continuous inkjet printer remains absolutely clean all the time.

Start-up process without mouth-sealed printhead

Traditional nozzle-less seal designs can lead to unstable printers from start-up, resulting in a printer's printhead that often gets dirty as the ink is lowered from the moment it is charged.

Solve the existing problems in the egg industry

The Continuous Inkjet Printer is a simple and reliable marking and coding solution for the egg industry, as the Continuous Inkjet Printer reliably marks and codes eggs and cartons inside the egg sorter.

1. FDA and EU compliant food grade inks with high contrast and can be printed on eggshells (color: red, blue or green).
2. The egg sorter with 8 lanes and 8 marking machines can be marked and coded at speeds of up to 252,000 eggs/hour.

Continuous inkjet marking machine (CIJ) in the egg industry

Continuous inkjet marking machines (CIJs) label every desired product material and surface during the production process, using fixed and variable data during the production process. Why use CIJ marking technology to mark and code eggshells and cartons?

• The marking head of the continuous inkjet marking machine can be flexibly mounted in all directions, making the marking/coding positioning very flexible.
• Thanks to non-contact marking, eggs of different sizes can be marked/coded without the need to readjust the marking heads.
• Food-grade inks that comply with FDA and EU standards ensure that eggshell marking and coding will not cause certain harm to human health.
• CIJ marking and coding also provides readability on all egg carton materials and requires less effort than traditional labeling.
• Plug-and-play is realized in the marking and coding process in the egg sorter, and the marking and coding process is greatly simplified; This makes CIJ technology the most cost-effective solution for marking and coding eggs and cartons.
• Establishing a uniform coding system for all production steps saves a variety of costs.
